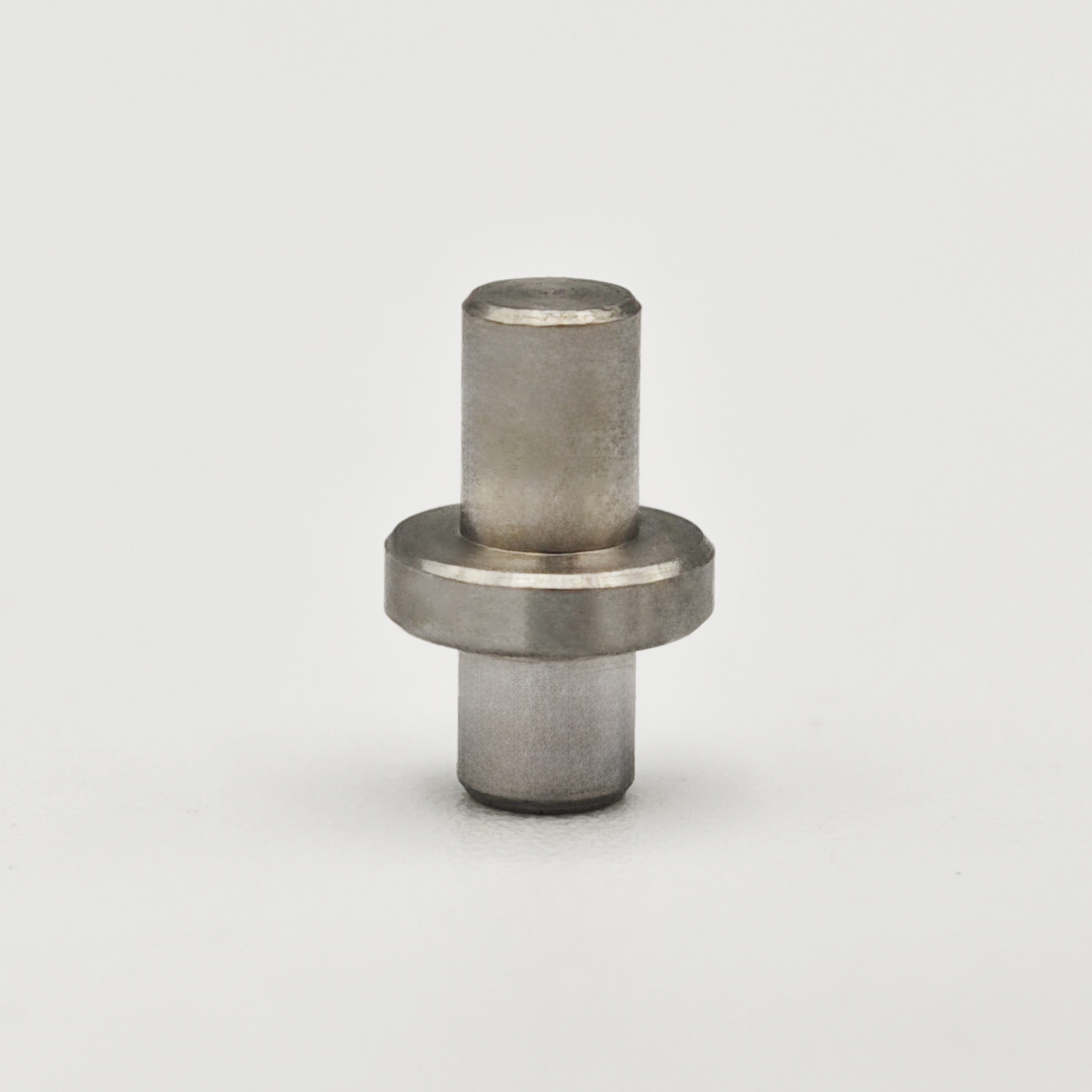

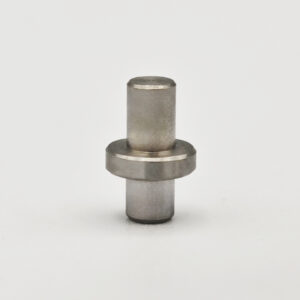

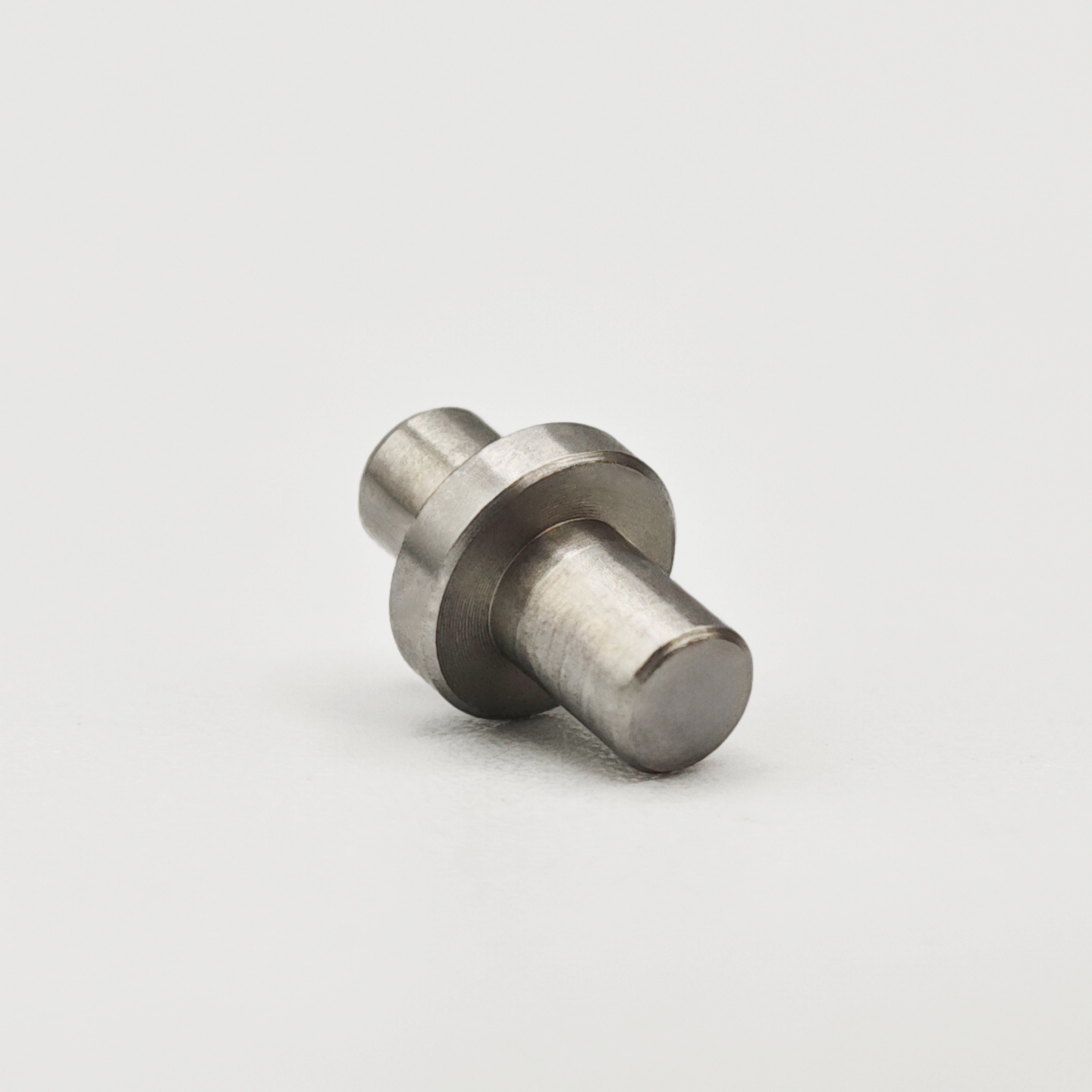

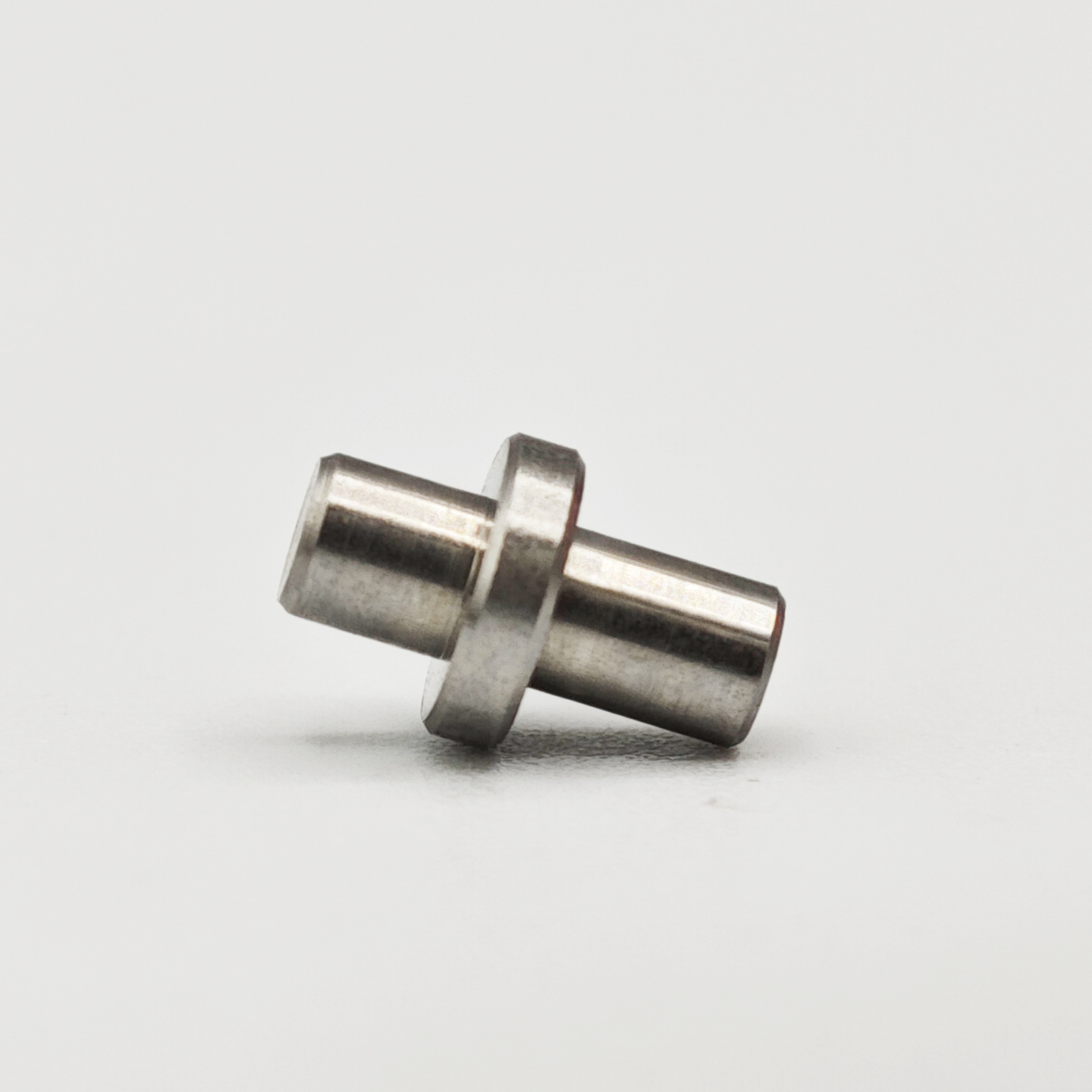

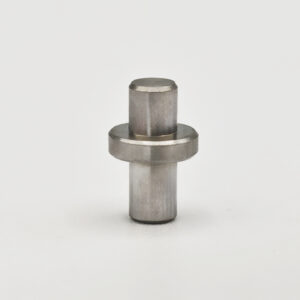

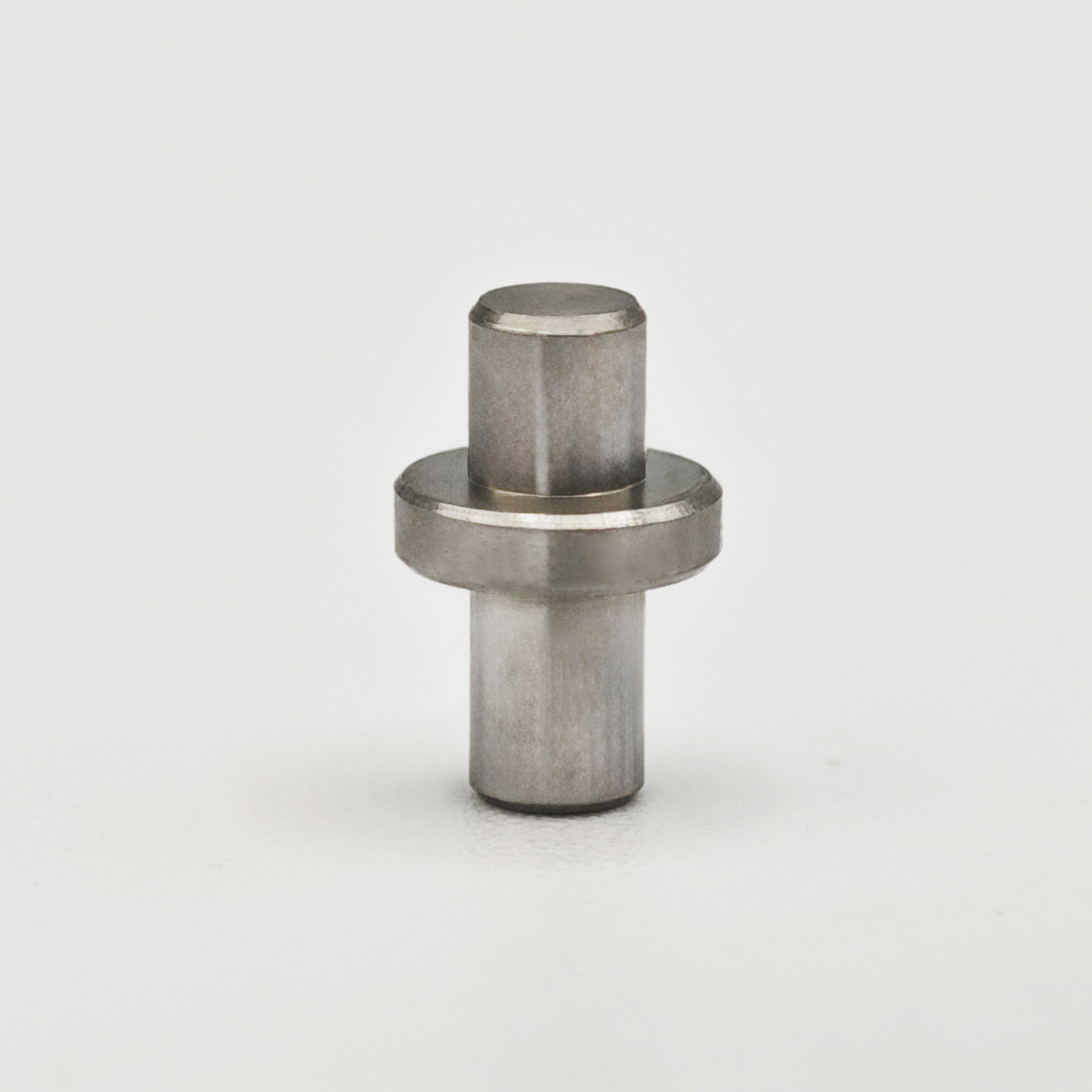

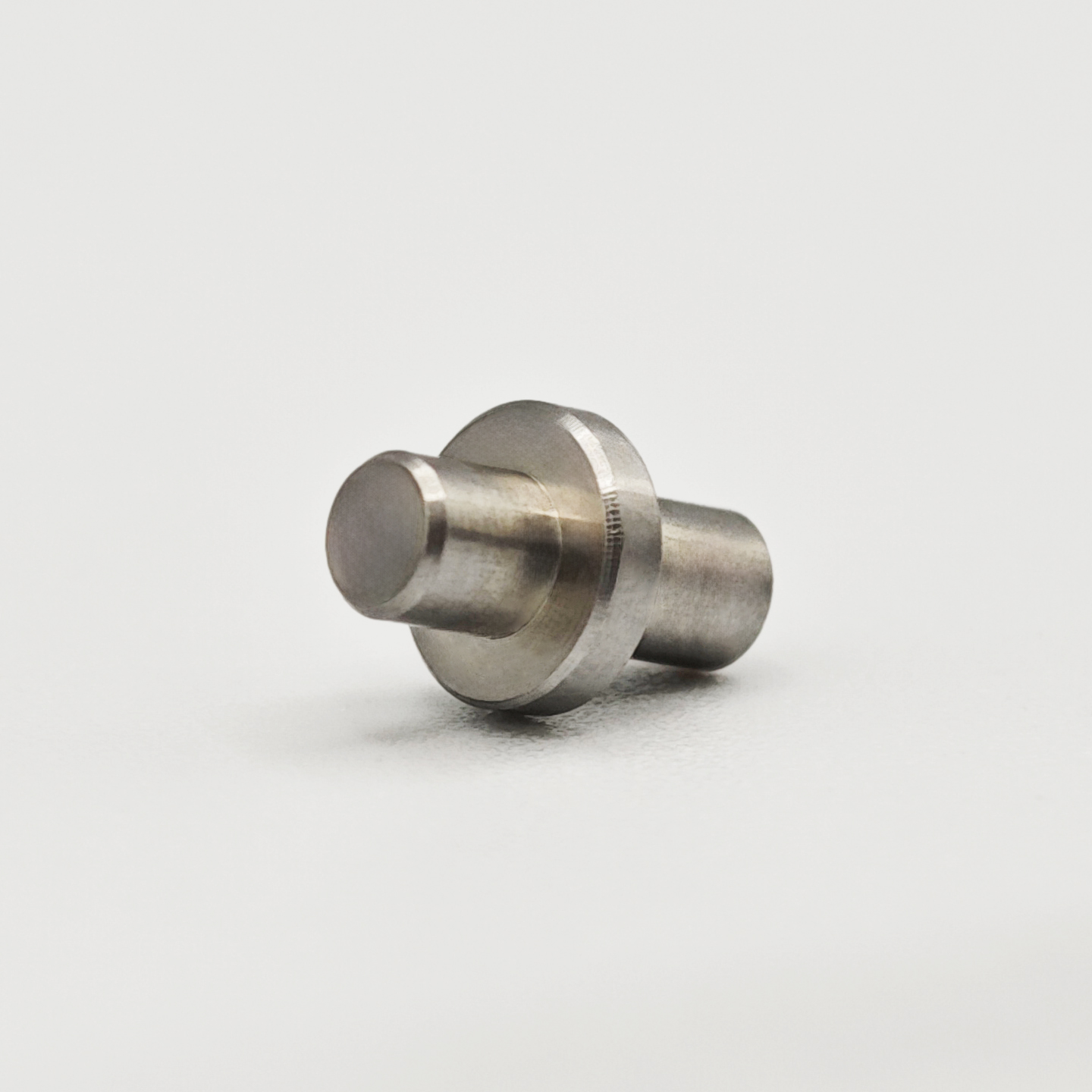

Stainless steel step shaft pin shouldered locating pin roll Dual-section shaft diameter limit pin CNC non-standard customized precision pin roll

One-piece intermediate shoulder step, the end face clings to the mounting surface during assembly, the press-in depth of the pin roll is automatically limited, no additional gasket is added for limiting, over-assembly is avoided, the positioning dimension is stable, and the assembly structure is simplified.

Double-head stepped shaft, two-way accurate positioning

Optical axis with different diameters at both ends, one end embedded base, one end clamping workpiece, two-way coaxial alignment of double-layer plate/upper and lower dies, small gap, high repeat positioning accuracy, suitable for double-layer clamping and clamping limit scenes.

Precision material selection, wear-resistant and durable

Optional 45 # carbon steel, 304 stainless steel and bearing steel. The carbon steel can be tempered and heat-treated to improve the surface hardness, resist extrusion, repeated insertion and abrasion, and is not easy to deform and burr in long-term high-frequency use.

CNC precision machining with stable tolerance

The complete vehicle is integrally formed without splicing, the excircle is finely turned smooth, the tolerance of axle diameter, step thickness and total length is strictly controlled, the parts of the same specification are interchangeable, and the assembly and insertion are smooth without getting stuck.

Full-size non-standard customization

The shaft diameter at both ends, outer diameter of flange, overall overall length and material can be changed according to the need. They are customized according to the sample/drawing. They are suitable for various non-standard inspection tools and special assembly requirements of automatic equipment.

Yijia Hardware was established in the Yangtze River Delta Demonstration Zone in 2006, with dual system certifications of ISO9001 and IATF16949, and specializes in one-stop customization of precision fasteners. Our products are sold to over ten countries worldwide and serve more than 200 customers at home and abroad. Our main products include precision turning parts, riveting parts, copper inserts, and non-standard fasteners.

The factory is equipped with full chain production equipment such as CNC machines, walking machines, and cold heading machines imported from Taiwan, Japan, and Germany. It can process materials such as carbon steel, stainless steel, copper, and aluminum, and is suitable for industries such as automobiles, electronics, communications, and instruments.

Equipped with imported detection instruments such as anime and optical full inspection machine, with processing accuracy of ± 5μm; The raw materials comply with RoHS environmental standards and can provide SGS and MSDS reports for reliable customized delivery.
