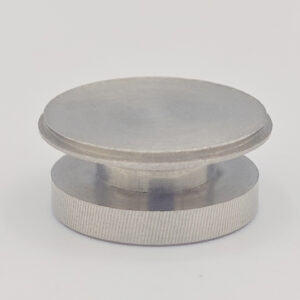

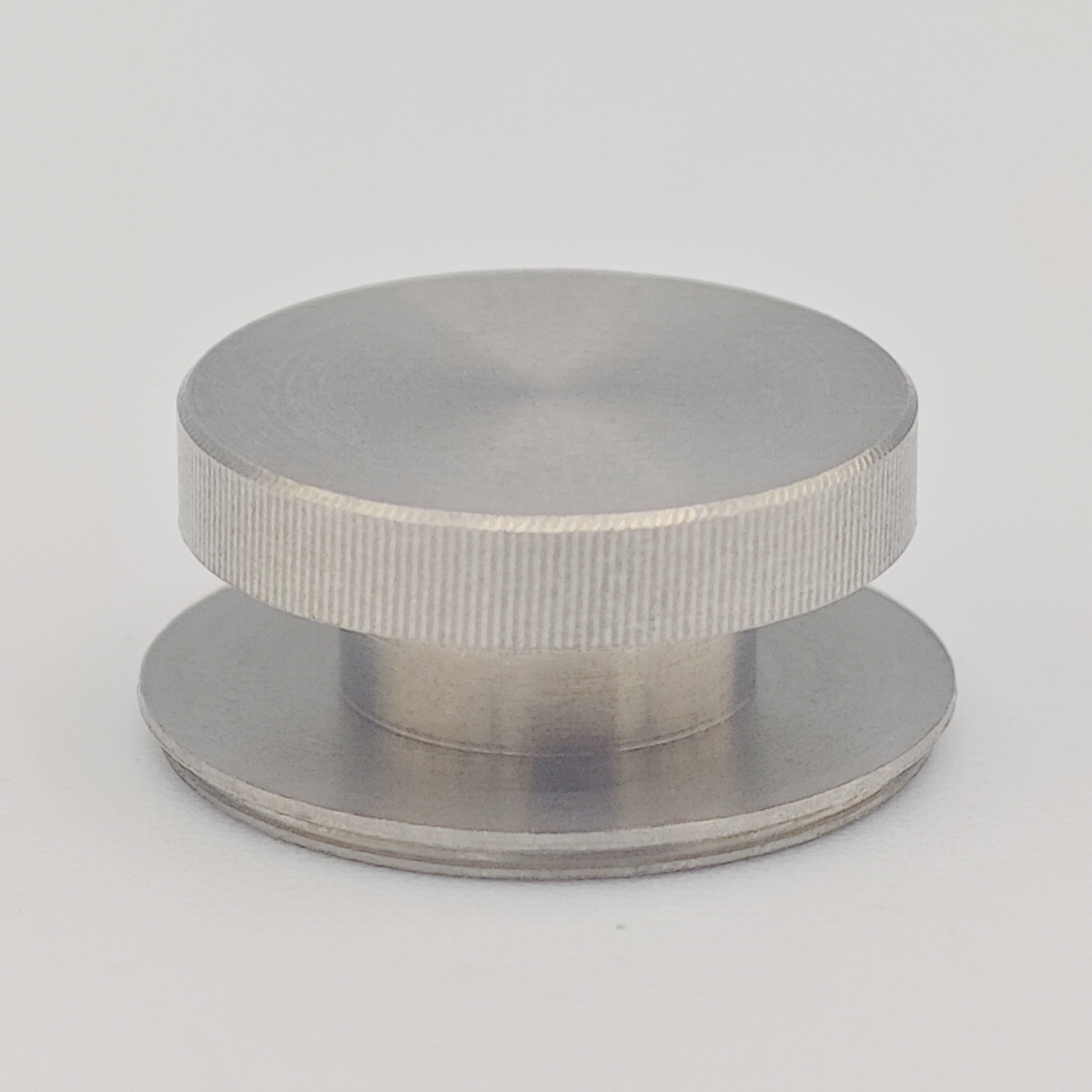

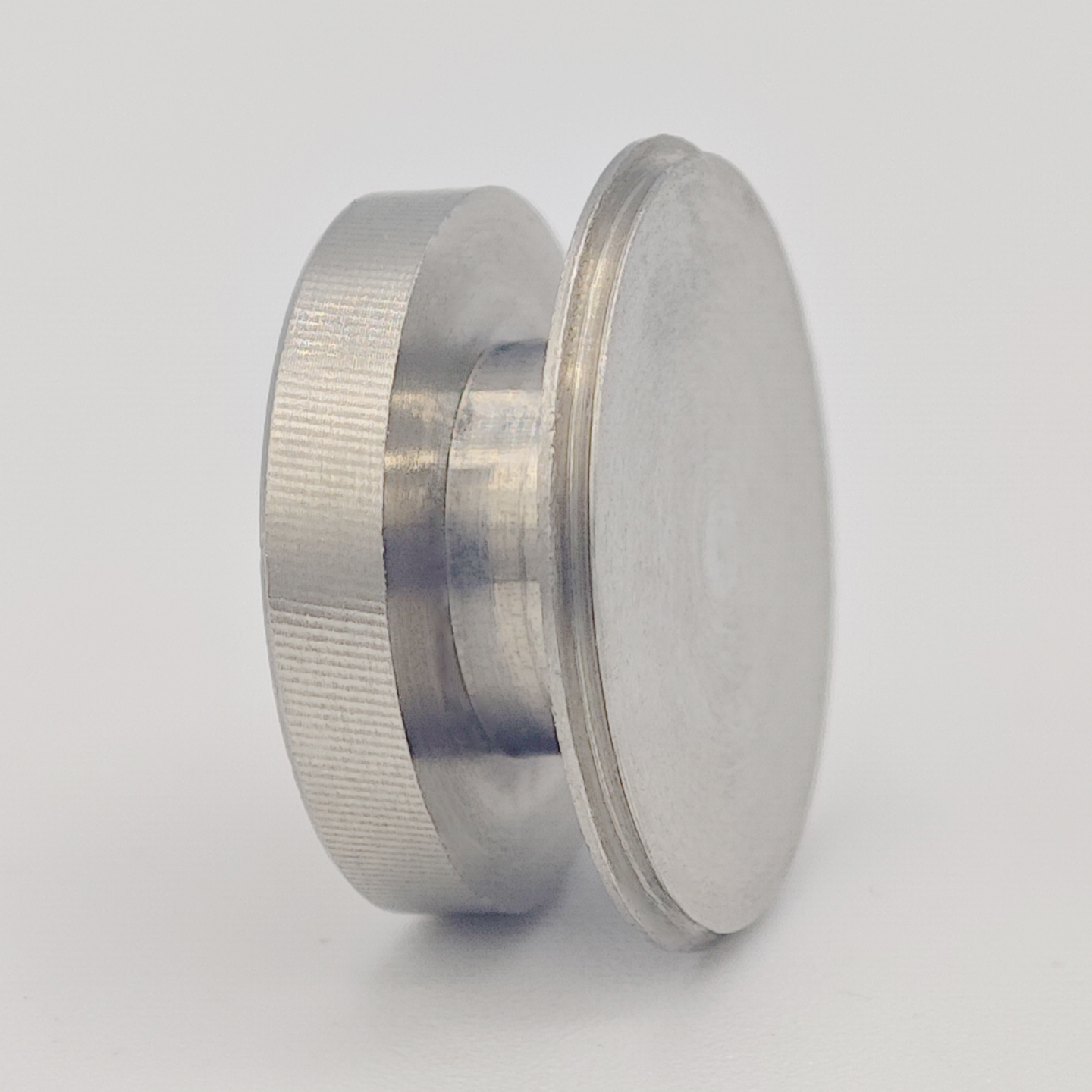

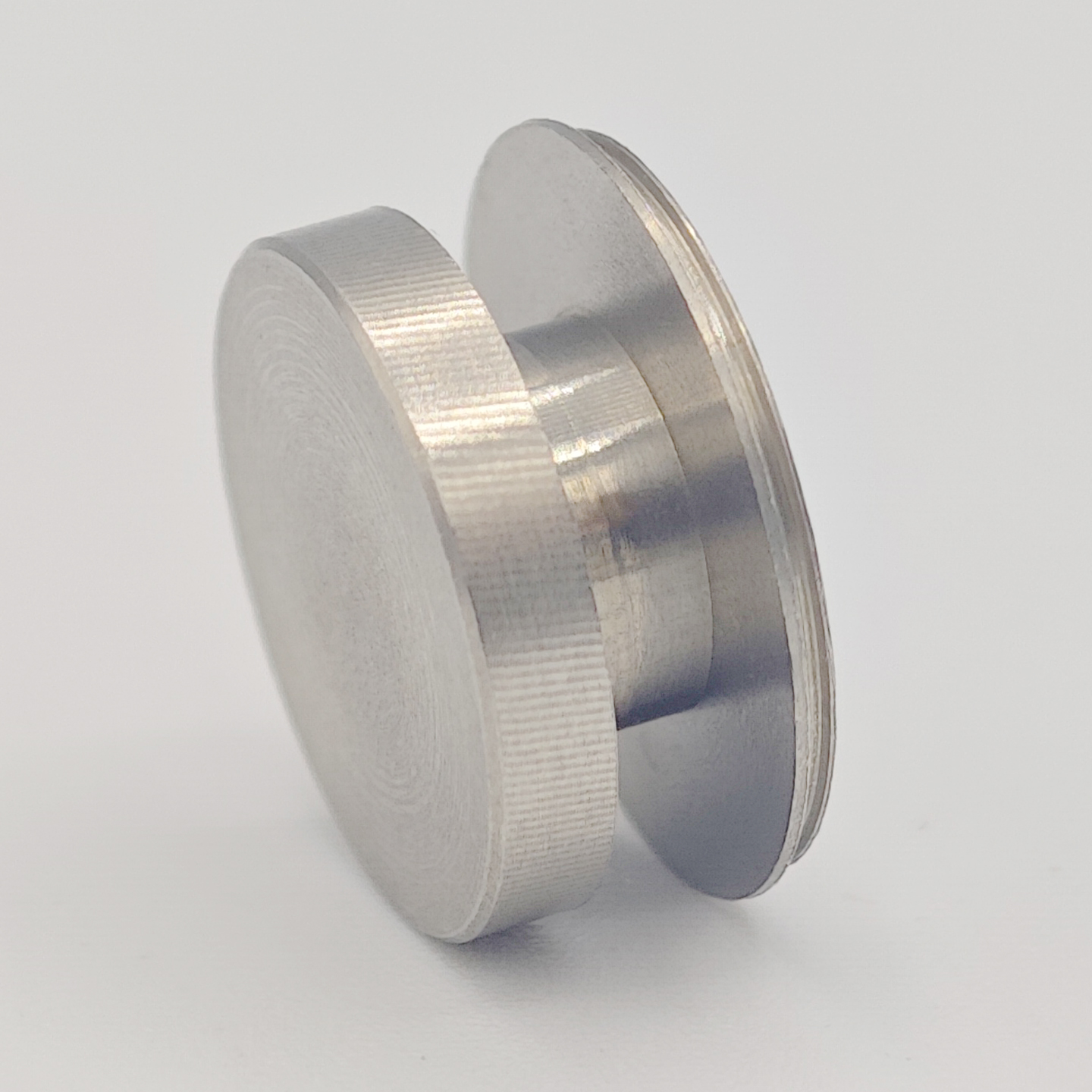

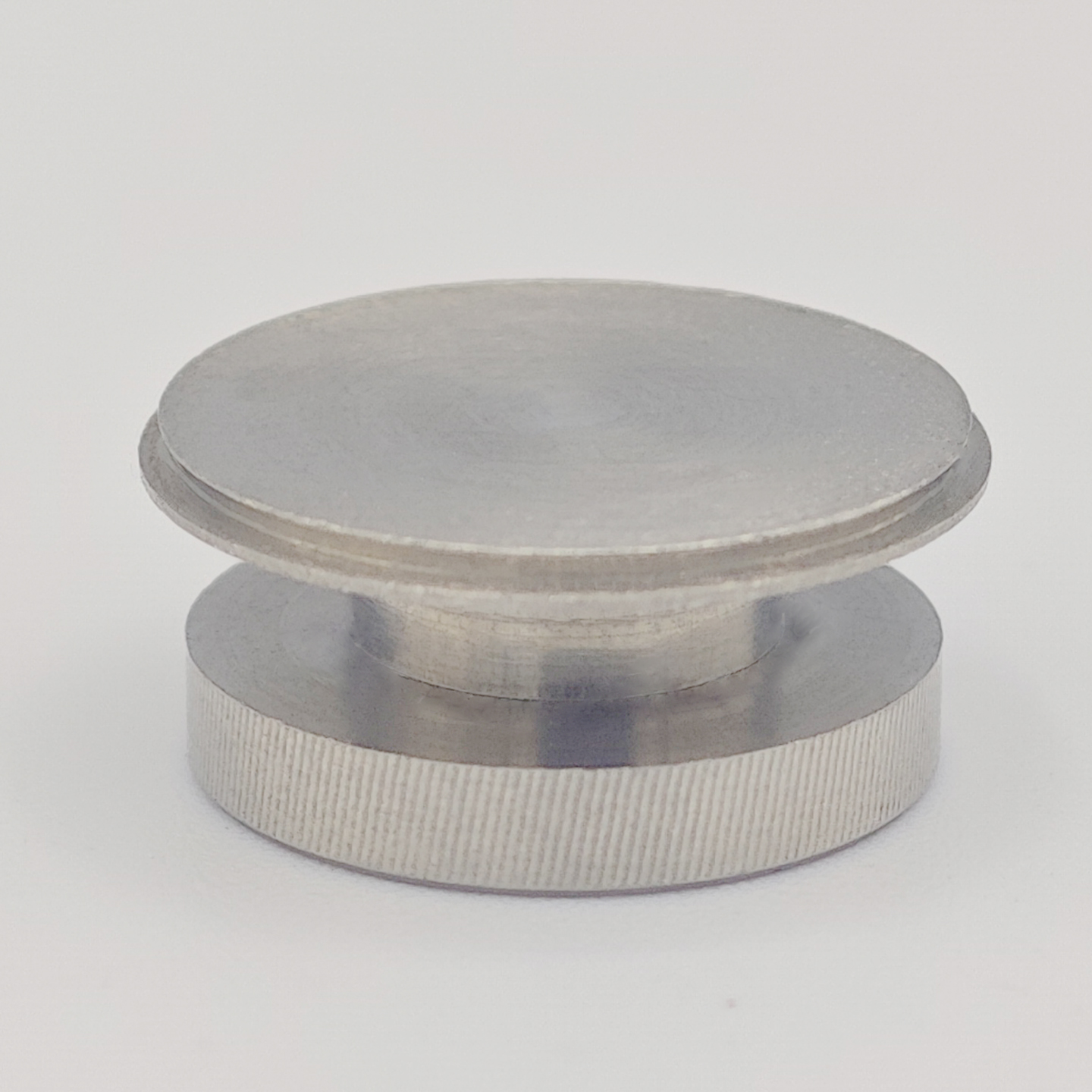

Stainless steel double step smooth positioning component (double step shaft, limit column, non-standard turning positioning pin)
Stainless steel double step smooth positioning component (double step shaft, limit column, non-standard turning positioning pin)
Stainless steel double step smooth positioning component (double step shaft, limit column, non-standard turning positioning pin)
Stainless steel double step smooth positioning component (double step shaft, limit column, non-standard turning positioning pin)
Stainless steel double step smooth positioning component (double step shaft, limit column, non-standard turning positioning pin)
Stainless steel double step smooth positioning component (double step shaft, limit column, non-standard turning positioning pin)
Stainless steel double step smooth positioning component (double step shaft, limit column, non-standard turning positioning pin)
Stainless steel double step smooth positioning component (double step shaft, limit column, non-standard turning positioning pin)

Stainless steel double step smooth positioning component (double step shaft, limit column, non-standard turning positioning pin)

This is a brass side hole injection molded embedded nut, which is formed by precision turning of brass. The side hole design allows plastic to penetrate and form a physical clamp during injection molding, greatly improving the anti rotation and anti detachment performance compared to ordinary rolled inserts; The internal thread has high precision, and the brass material has both corrosion resistance and good conductivity. It is widely used in high-strength connection scenarios for plastic parts such as home appliances, automotive electronics, and smart homes, supporting customized specifications and mass production.

Get Instant Quotes
  1. Double step structure, positioning and limiting in one step

The design of large diameter steps at both ends can achieve bidirectional axial limit, accurately control installation depth, prevent parts from loosening or excessive installation, and enhance assembly stability.

  1. Precision turning technology with high dimensional accuracy

Adopting a CNC lathe for integrated molding, with strict control of coaxiality and tolerance, and good surface smoothness, it can directly meet the high-precision requirements of interference fit/clearance fit.

  1. Made of stainless steel material, it is corrosion-resistant, rust proof, and has a long service life

High quality stainless steel material is selected, which has excellent corrosion resistance and rust prevention performance, suitable for complex working conditions such as humidity and dust, and is not easy to rust or deform after long-term use.

  1. Smooth and non rolling design, suitable for a wider range of scenarios

The intermediate shaft section is a smooth and non rolling structure with no interference from excess patterns, suitable for positioning scenarios such as fixtures and precision machinery without anti rotation requirements, and has strong universality.

  1. Full specification non-standard customization, flexible adaptation to needs

The diameter/thickness of the steps, the length of the shaft segments, and the tolerance level can all be customized according to needs, supporting rapid development based on customer drawings and adapting to various industry scenarios such as automation equipment, instruments, furniture and hardware.



Yijia Hardware was established in the Yangtze River Delta Demonstration Zone in 2006, with dual system certifications of ISO9001 and IATF16949, and specializes in one-stop customization of precision fasteners. Our products are sold to over ten countries worldwide and serve more than 200 customers at home and abroad. Our main products include precision turning parts, riveting parts, copper inserts, and non-standard fasteners.

The factory is equipped with full chain production equipment such as CNC machines, walking machines, and cold heading machines imported from Taiwan, Japan, and Germany. It can process materials such as carbon steel, stainless steel, copper, and aluminum, and is suitable for industries such as automobiles, electronics, communications, and instruments.

Equipped with imported detection instruments such as anime and optical full inspection machine, with processing accuracy of ± 5μm; The raw materials comply with RoHS environmental standards and can provide SGS and MSDS reports for reliable customized delivery.





Product Specification

Item No项目编号 t202659
Material材料 stainless steel
treatment表面处理 True color fine machining, passivation, quenching + blackening, electroplating, polishing, salt bath nitriding
Spec规格 Non-standard customized size
Material customizable可选材料 Iron/Copper/Aluminum/Stainless Steel/Nylon
Place of Origin原产地 Suzhou City, Jiangsu Province, China
MOQ最小订单量 100000 PCS
Supply Ability供应能力 2,0000,000 pcs
Packing包装 OPP Bag + Export Carton
Shipping Port出货港口 Shanghai Port / Ningbo Port, as per customer’s request
Delivery Time大货交货期 About 7-15 days
Sample Lead Time样品周期 3–10 working days
Payment Terms付款方式 T/T, L/C or Western Union
